Copper Press Caps

with visual indication

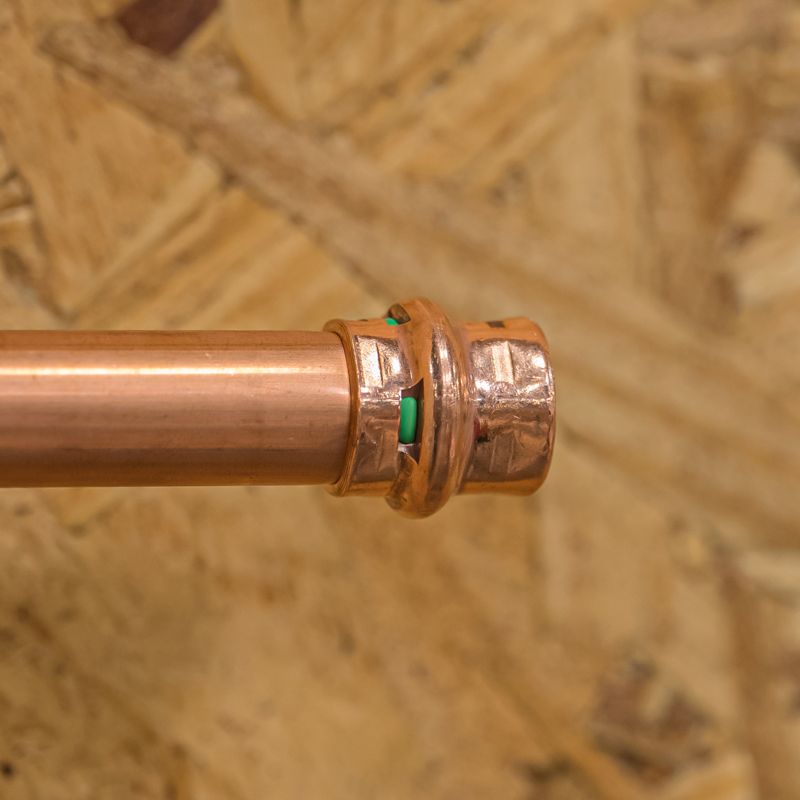

SurePress® is an innovative line of press fittings that visually confirms a pressed connection.  Green indication fills windows once pressed, confirming a successful seal. This allows installers and inspectors to quickly identify if a fitting has been pressed prior to pressure testing. Simply press the fitting, see green and go!

Features & Benefits

  • Green indication visible up to five feet away
  • Compatible with leading hydraulic press tool brands
  • Limited lifetime warranty
  • SurePress® technology streamlines installation – simply press, see green, and go!
  • Increase efficiency on the jobsite, saving time and labor cost
  • Approved for hot and cold potable water, rainwater/gray water, chilled water, and residential steam (5 psi maximum) applications

Approved Applications

• Fluids/Water
• Hot and cold potable water
• Rainwater/Gray water
• Chilled water
• Residential steam (5 psi maximum)

Product Details for Copper Press Caps

Related Products

Copper Press Reducer Fittings

Copper Press Fitting Couplings

Brass 90 Degree Drop Ear Elbow

Copper Press 45 degree elbow

FAQ | Copper Press Caps

Everything you need to know about copper press caps and copper end caps.

What is a press cap used for?

A press cap seals off the end of a copper pipe. It’s used to permanently (or temporarily) cap a line without solder. This is useful for pressure-testing or when ending a plumbing line in a system, allowing for future expansion.

How do you install a press cap?

Installing is simple: you press it onto the cleaned end of a copper tube and crimp it with a press tool. The internal O-ring creates a watertight seal, effectively blocking the flow at that pipe end.

Can a press cap handle high pressure?

Yes. Like other SurePress fittings, press caps are rated for up to 300 psi quickfitting.com , which means they can safely be used for pressure testing new lines or permanently sealing off a live line in commercial applications. They are just as reliable as soldered caps, but much faster to install.

When would a plumber use a press cap?

Common scenarios include capping pipes during renovations, temporarily sealing a line while reconfiguring plumbing, or permanently capping a branch that might be extended later. In commercial installs, they save time when you need to quickly cap and move on, without waiting for cool-down as with solder.

Is a press cap removable or reusable?

No. once a press cap is crimped on, it creates a permanent seal. If you need to reopen that line, you’d cut the cap off or use a press union ahead of time for disassembly. Press caps are considered one-time use fittings, similar to how soldered caps must be cut off if the line is reopened.
